ELANA II 系列筒燈，專注酒店客房領(lǐng)域。多色溫，多角度，多面框可選。采用透鏡配光，保證出光精準的同時，利用階梯防眩技術(shù)，帶來舒適的光環(huán)境。

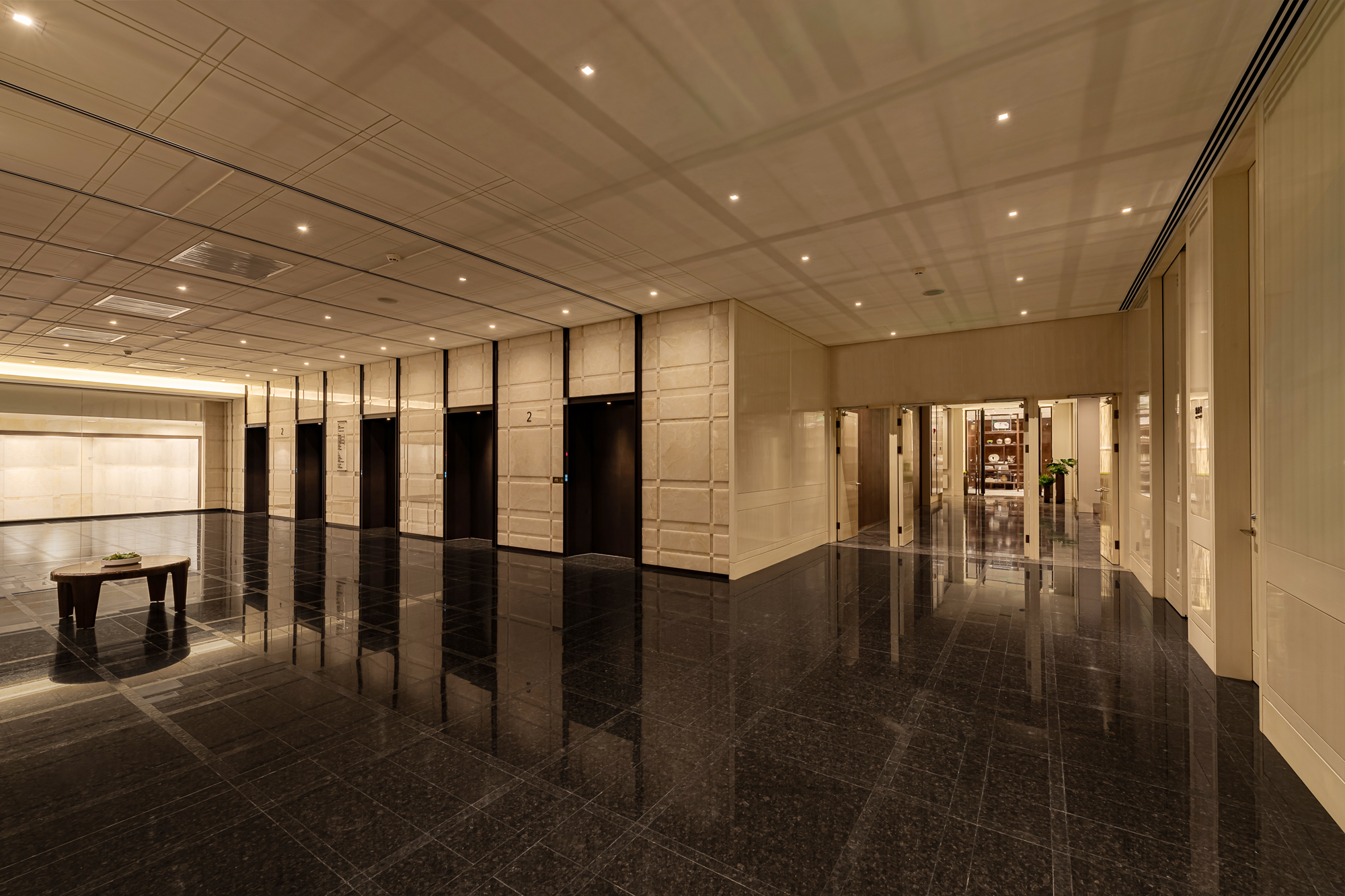

JW萬豪侯爵酒店

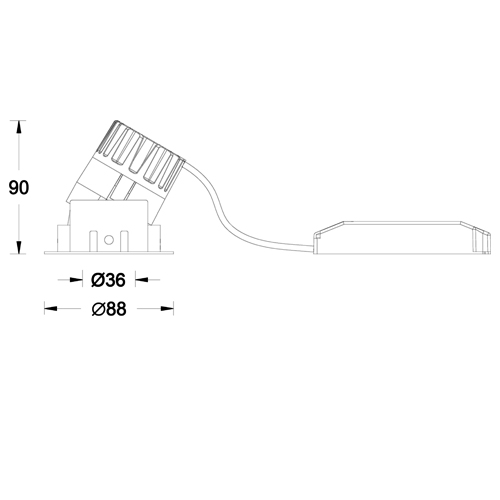

Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |

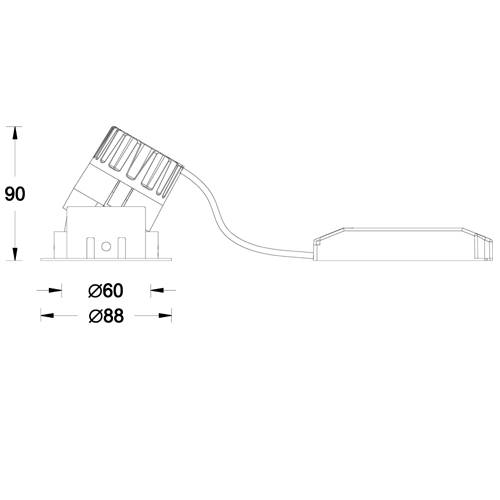

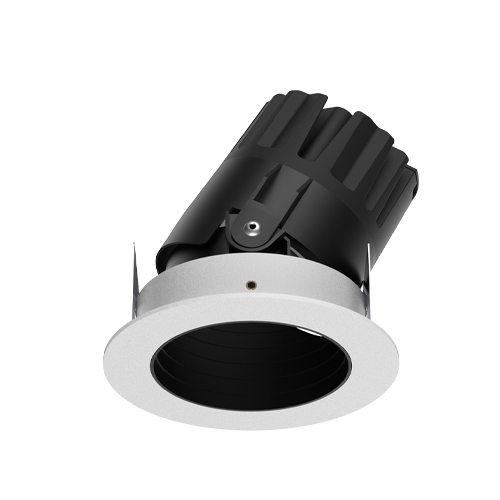

DDF Downlight Directional F series | 3 3” | 1 Round Trim | LM07 COB 7W LM10 COB 10W | E On-Off D 0-10V Dimming | 1 18° 2 24° 3 36° | 27 2700K 30 3000K 40 4000K | B Black | WT White |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |

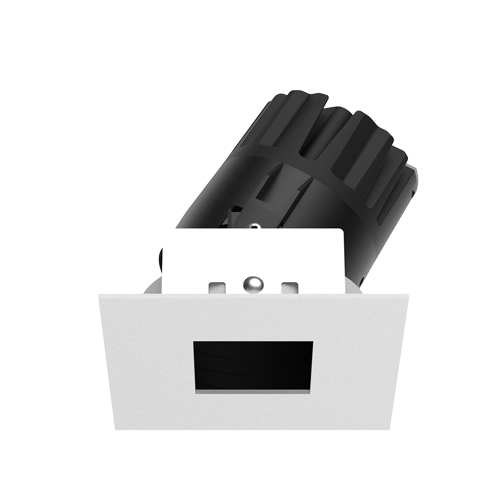

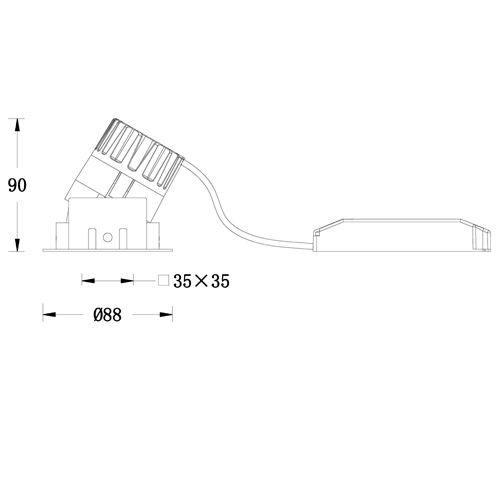

DDF Downlight Directional F series | 3 3” | 5 Square Trim | LM07 COB 7W LM10 COB 10W | E On-Off D 0-10V Dimming | 2 24° 3 38° | 27 2700K 30 3000K 40 4000K | B Black | WT White |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |

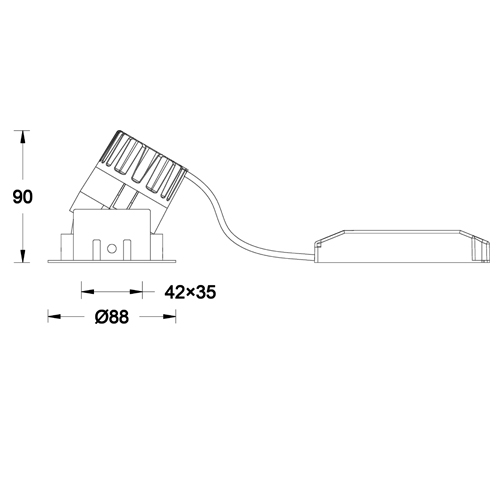

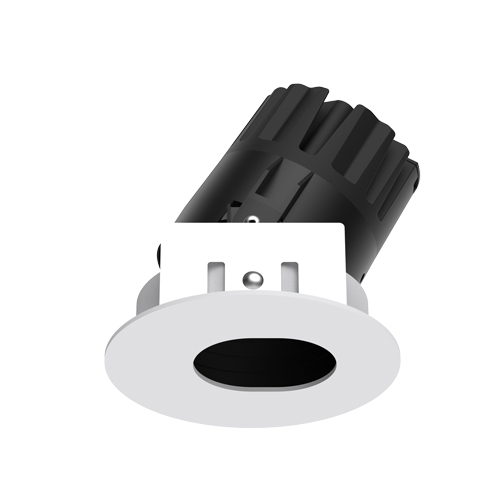

DDF Downlight Directional F series | 3 3” | E Oval hole | LM07 COB 7W LM10 COB 10W | E On-Off D 0-10V Dimming | 1 15° 2 24° 3 36° | 27 2700K 30 3000K 40 4000K | B Black | WT White |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |

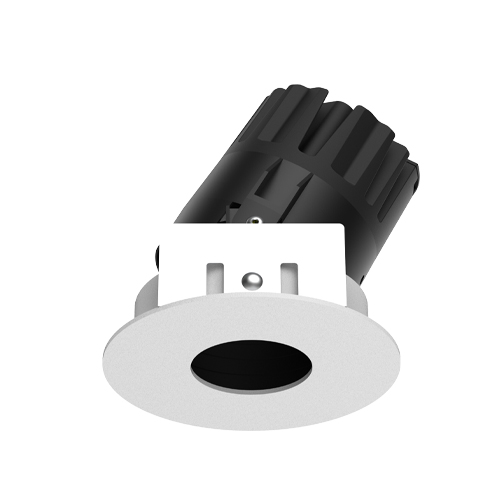

DDF Downlight Directional F series | 3 3” | P Pin hole | LM07 COB 7W LM10 COB 10W | E On-Off D 0-10V Dimming | 1 15° 2 24° 3 36° | 27 2700K 30 3000K 40 4000K | B Black | WT White |
示例：DDF31-LM10E-230BWT
