PLANA PRO

DDP21/DDP31/DDP41/DDP51 經典之作, 2/3/4/5寸

調角 圓形 單色

DDP21/DDP31/DDP41/DDP51 經典之作, 2/3/4/5寸

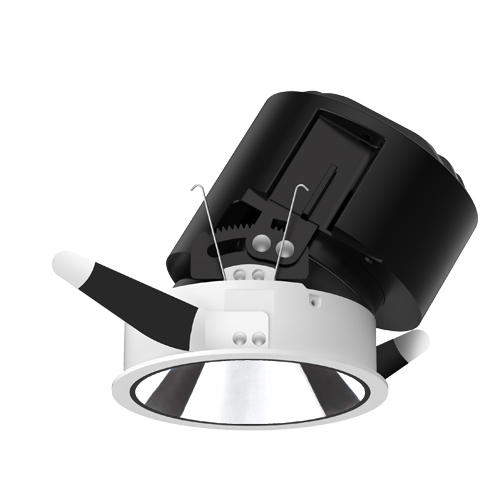

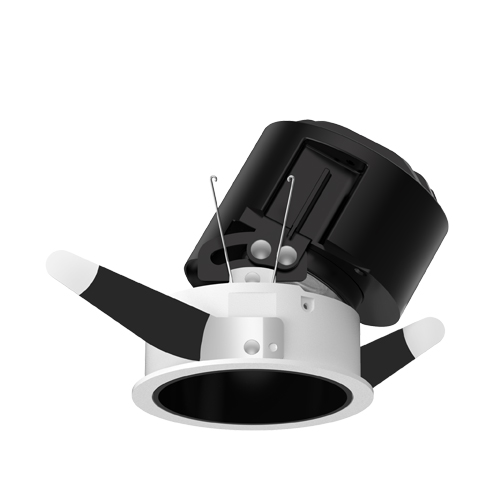

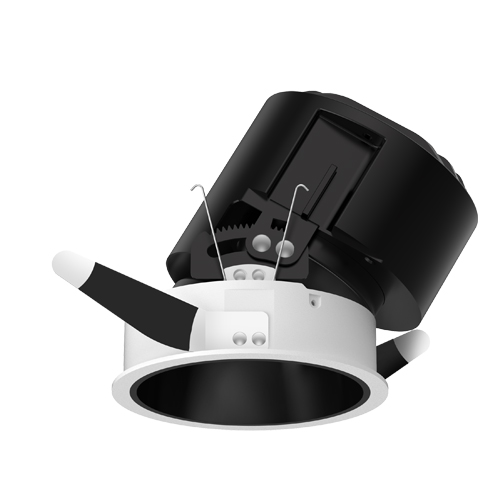

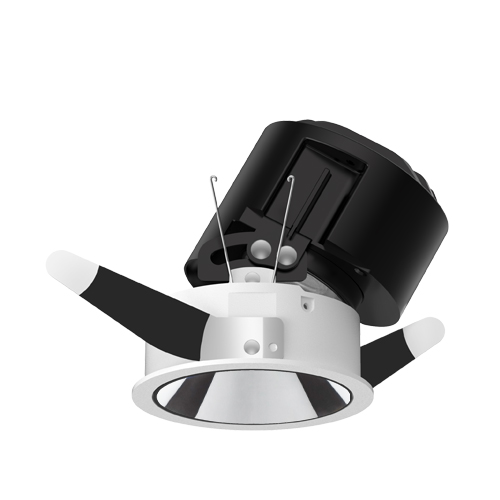

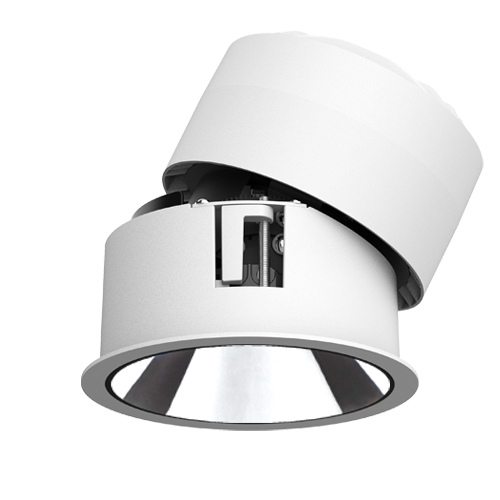

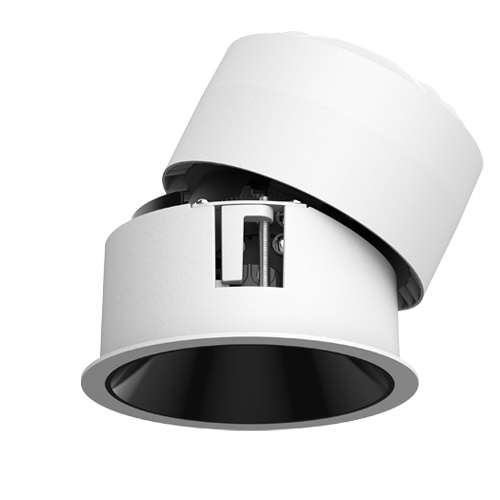

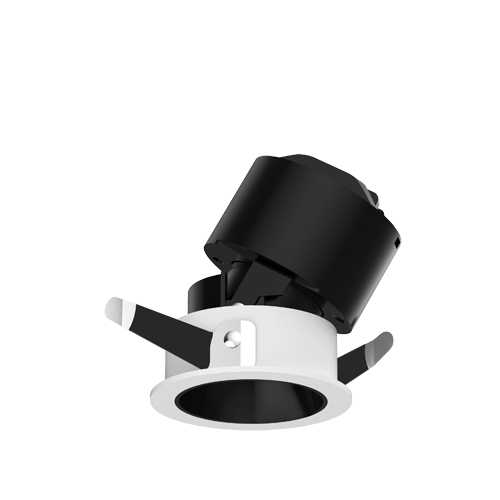

PLANA Pro 下照和調角一體嵌入式圓形筒燈，整燈精致簡潔，具備精準的配光，采用 SUBROSA 隱光技術，同時具有極致的防眩效果。主要適用于酒 店及商業公共空間等場所。

產品特點
產品規格

Model

Size

Trim

LED

Driver

CCT

Beam

Reflector

Finish

DDP

Downlight Directional

P series

2 2”

1  Round Trim

LD08 LED 8W

E  On-Off

D 0-10V Dimming

N  No Driver

27  2700K

30  3000K

40  4000K

1 15°

2 24°

3 36°

B Black

S Specular

WT  White

Model

Size

Trim

LED

Driver

CCT

Beam

Reflector

Finish

DDP

Downlight Directional

P series

3 3”

1  Round Trim

LM13 LED13W

LM18 LED 18W

E  On-Off

D 0-10V Dimming

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

1 18°

2 28°

3 38°

4 48°

5 58°

B Black

S Specular

WT  White

Model

Size

Trim

LED

Driver

CCT

Beam

Reflector

Finish

DDP

Downlight Directional

P series

3 3”

1  Round Trim

LM18 LED 18W

N  No Driver

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

1 18°

2 28°

3 38°

4 48°

5 58°

B Black

S Specular

WT  White

Model

Size

Trim

LED

Driver

CCT

Beam

Reflector

Finish

DDP

Downlight Directional

P series

4 4”

1  Round Trim

LM18 LED 18W

LM25 LED25W

E  On-Off

D 0-10V Dimming

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

2 20°

3 30°

4 40°

5 50°

6 60°

B Black

S Specular

WT  White

Model

Size

Trim

LED

Driver

CCT

Beam

Reflector

Finish

DDP

Downlight Directional

P series

4 4”

1  Round Trim

LM25 LED25W

N No Driver

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

2 20°

3 30°

4 40°

5 50°

6 60°

B Black

S Specular

WT  White

Model

Size

Trim

LED

Driver

CCT

Beam

Reflector

Finish

DDP

Downlight Directional

P series

5 5”

1  Round Trim

LM32 LED32W

LM40 LED40W

E On-Off

D 0-10V Dimming

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

1 15°

2 24°

3 36°

5 55°

B Black

S Specular

WT  White

BK    Black

Model

Size

Trim

LED

Driver

CCT

Beam

Reflector

Finish

DDP

Downlight Directional

P series

5 5”

1  Round Trim

LM40 LED40W

N No Driver

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

1 15°

2 24°

3 36°

5 55°

B Black

S Specular

WT  White

BK    Black

示例：DDP51-LM40N-271BWT
