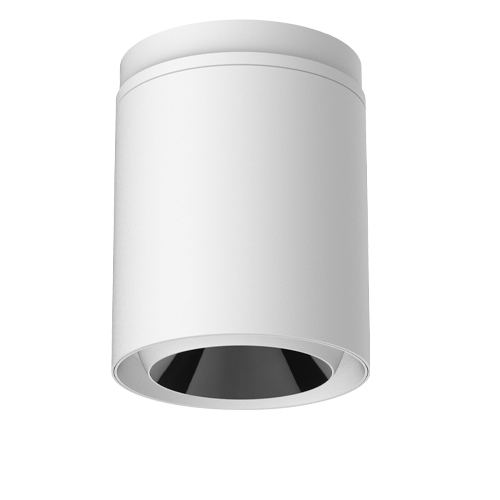

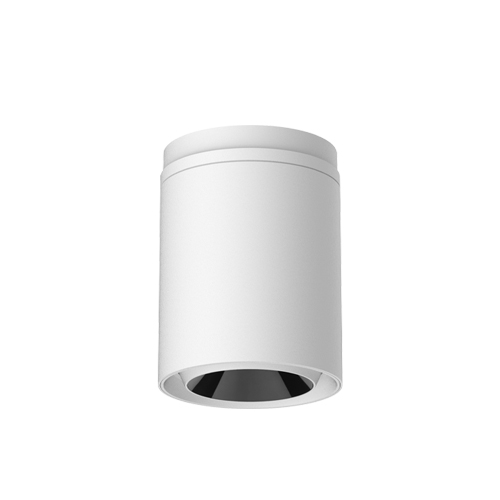

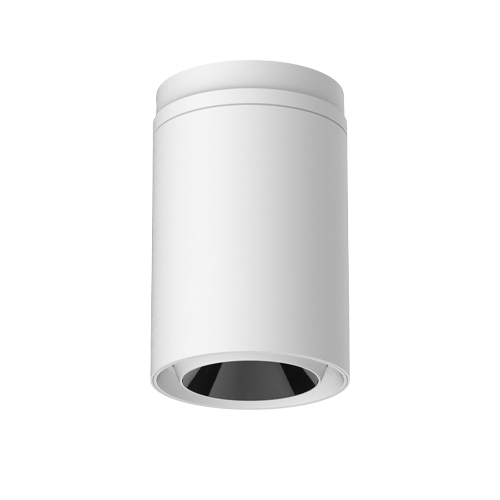

ES3N/ES3S/ES3M IP65下照調角一體化明裝筒燈
IP65下照調角一體化的明裝筒燈，精巧細致的外觀和結構設計，卓越的光學性能等都能給用戶帶來完美的光環境體驗，適用于公共高空間的功能性照明。

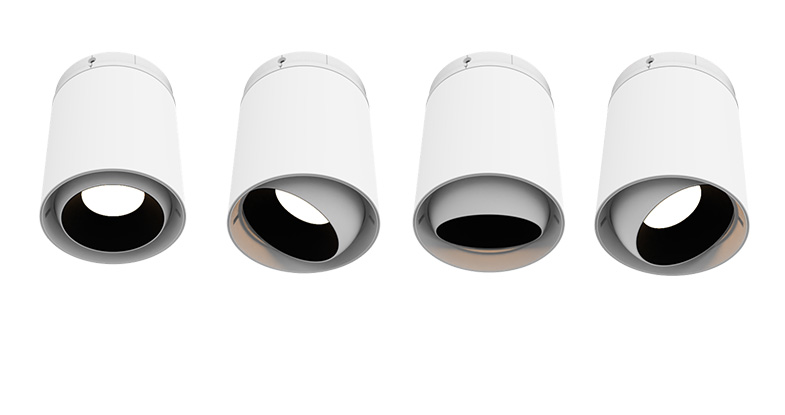

水平調節0-355°，垂直調角±25°

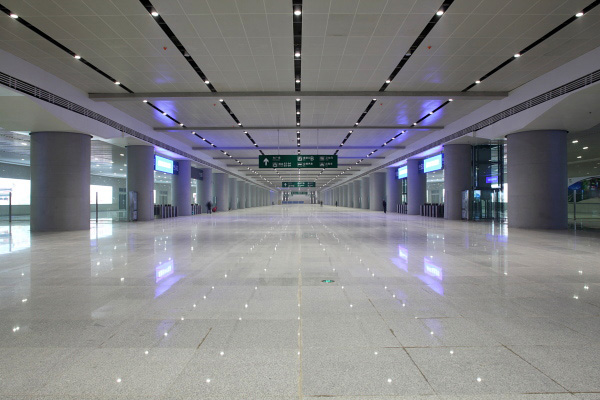

使用場景 一
Model | Comment | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Reflector | Finish |
ES3N | C Ceiling Mounted | 13 13(Max) | COB | 690 | EL ON-OFF 220V AC Power Supply DL 0-10V Dimming 220V AC Power Supply | 1 13° 2 20° 3 30° 4 40° | 30 3000K 40 4000K | B Black S Specular | WT White |
Model | Comment | Power (W) | LEDs (quantity) | Max Lumen (lm) | Control Systems | Beam | CCT | Reflector | Finish |
ES3S | C Ceiling Mounted | 18 18(Max) | COB | 1500 | EL ON-OFF 220V AC Power Supply DL 0-10V Dimming 220V AC Power Supply | 1 19° 2 26° 3 38° 5 52° | 30 3000K 40 4000K | B Black S Specular | WT White |
Model | Comment | Power (W) | LEDs (quantity) | Max Lumen (lm) | Control Systems | Beam | CCT | Reflector | Finish |
ES3M | C Ceiling Mounted | 33 33(Max) | COB | 2500 | EL ON-OFF 220V AC Power Supply DL 0-10V Dimming 220V AC Power Supply | 1 19° 2 26° 3 38° 5 52° | 30 3000K 40 4000K | B Black S Specular | WT White |
示例：ES3MC-33EL-130BWT
