ELANA系列LED方形窄邊嵌入式筒燈, 完美融合下照和調角一體化功能。良好的防眩光性能及顏色一致性控制，具有舒適的出光效果，主要適用于酒店及會所等室內場所。

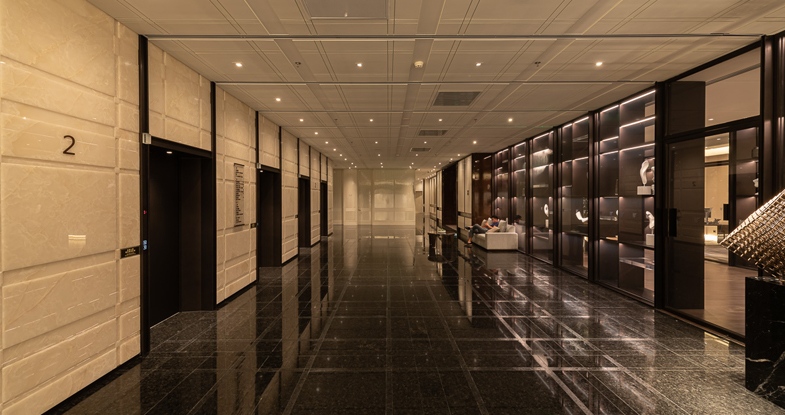

使用場景一
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
DDG Downlight Directional G series | 2 2" | 5 Rectangular Trim | LM04 COB 4W LM07 COB 7W | E On-Off D 0-10V Dimming | 1 15° 2 24° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black W White S Specular T Black Step H White Step | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
DDG Downlight Directional G series | 2 2" | 5 Rectangular Trim | LM07 COB 7W | N No Driver | 1 15° 2 24° 3 36° 5 50°
| 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black W White S Specular T Black Step H White Step | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
DDG Downlight Directional G series | 3 3” | 5 Rectangular Trim | LM07 COB 7W LM10 COB 10W LM13 COB 13W | E On-Off D 0-10V Dimming | 1 15° 2 24° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black W White S Specular T Black Step H White Step | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
DDG Downlight Directional G series | 3 3" | 5 Rectangular Trim | LM13 COB 13W | N No Driver | 1 15° 2 24° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black W White S Specular T Black Step H White Step | WT White BK Black |
示例：DDG25-LM07-E130SWT
注：15°和24°出廠默認帶蜂窩，其他角度無蜂窩
