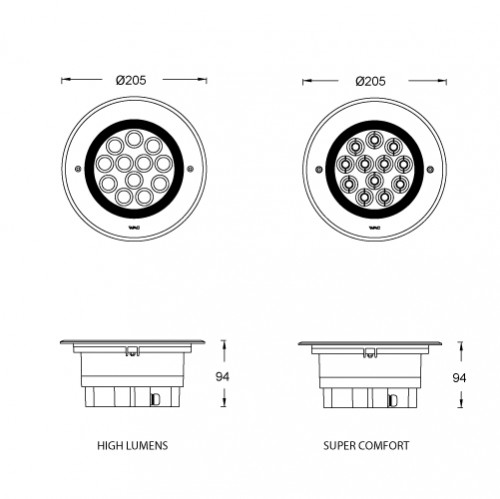

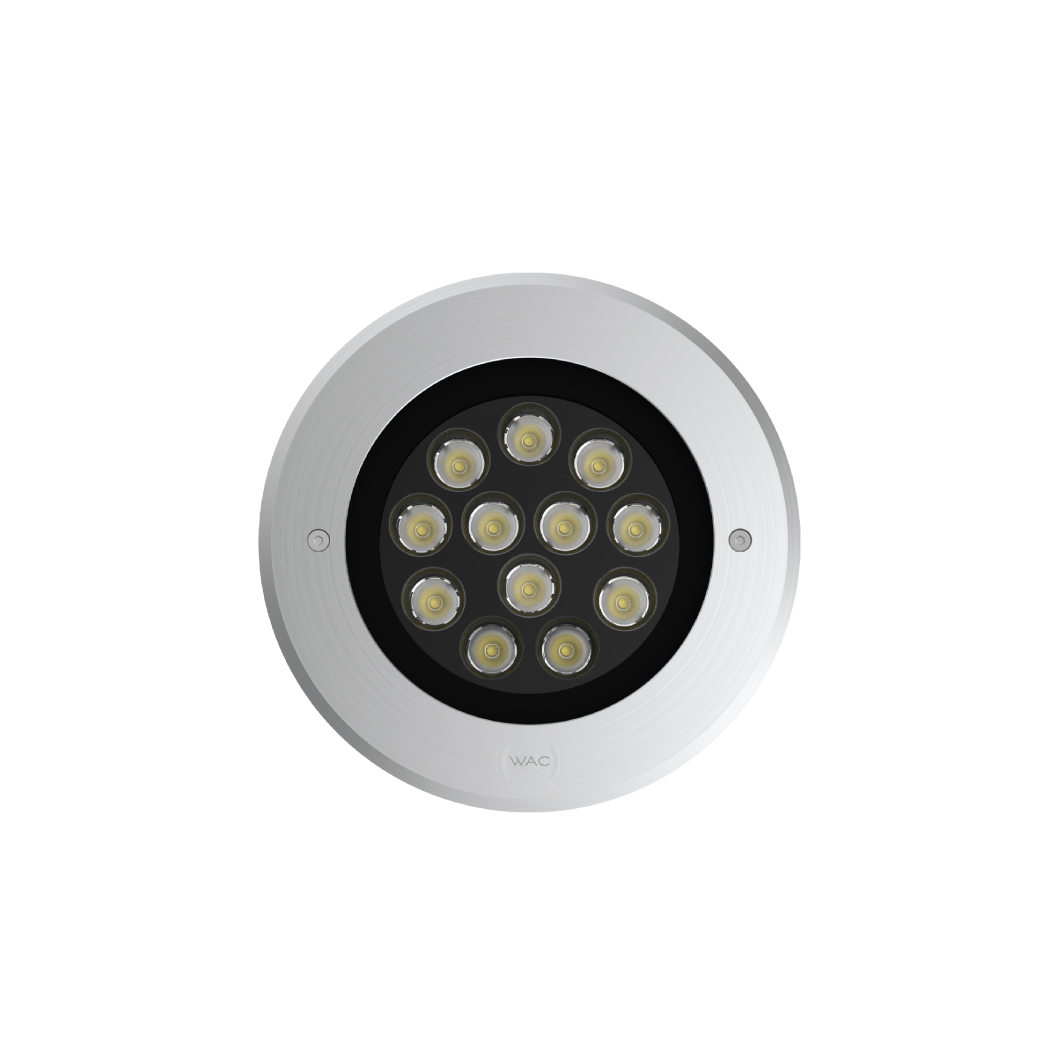

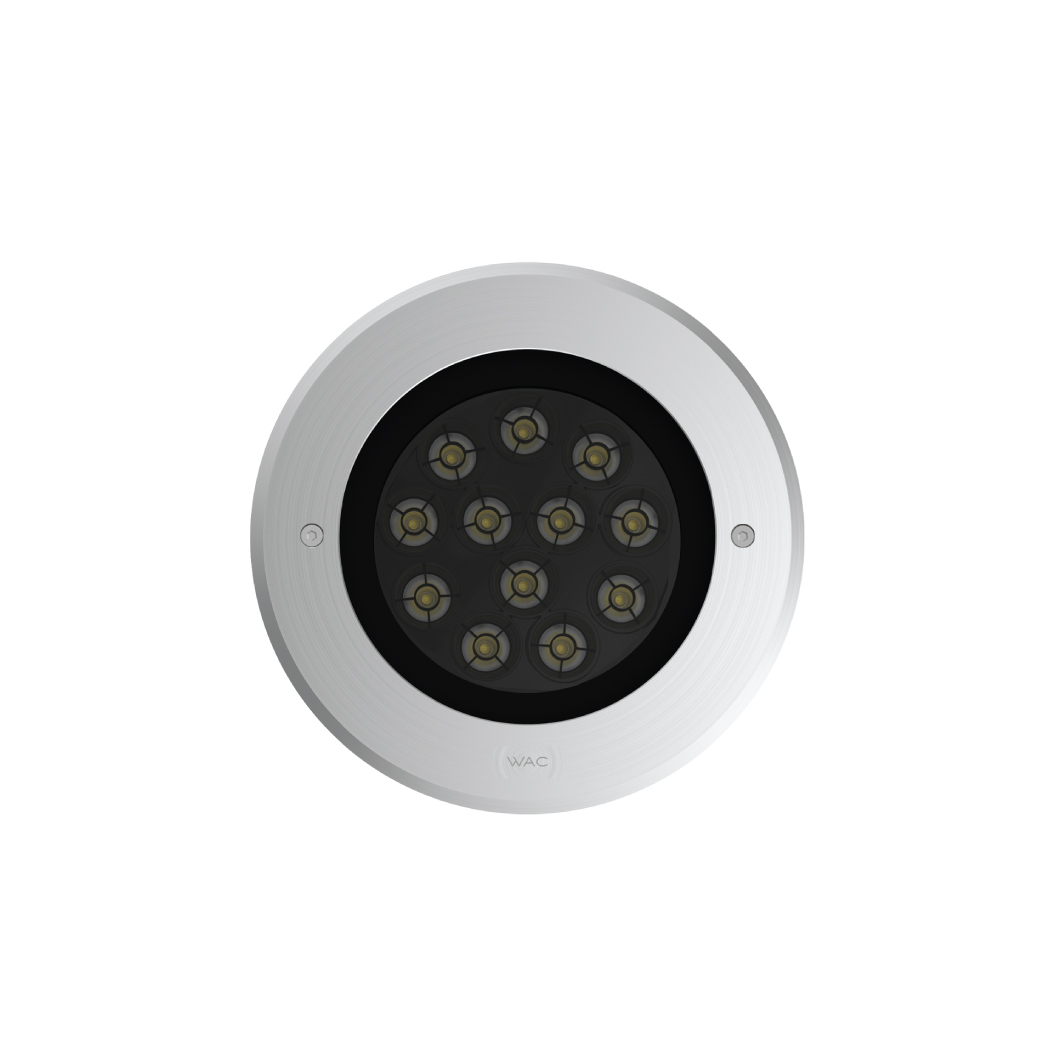

EIR5S/EIR6S Up Light/High Power LEDs/Φ205
FUEGO Compact 面框采用優質 316 不銹鋼，燈體鋁壓鑄成型，高溫粉末噴涂。適用于戶外環境，IP67 防護等級， IK08 防沖擊等級，可抗壓 2000kg。高透光率透鏡+專利隱光系統。配合預埋筒的設計，方便客戶安裝與維護。
| Model | Comment | Power (W) | LEDs (Quantity) | Max Lumens lm) | Control Systems | Beam | CCT | Finish |
EIR5S High Lumens | F Frame | 21 21(Max) | 12 | 1503 | EL ON-OFF | S 7° 1 14° 2 20° 3 30° | 27 2700K 30 3000K 40 4000K | SS Stainless Steal |
| Model | Comment | Power (W) | LEDs (Quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
EIR5S High Lumens | F Frame | 19 19(Max) | 12 | 1360 | ML DMX512 Dimming | S 7° 1 14° 2 20° 3 30° | 27 2700K 30 3000K 40 4000K | SS Stainless Steal |
| Model | Comment | Power (W) | LEDs (Quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
EIR6S Super Comfort | F Frame | 21 21(Max) | 12 | 1044 | EL ON-OFF | S 7° 1 13° 2 20° 3 30° | 27 2700K 30 3000K 40 4000K | SS Stainless Steal |
| Model | Comment | Power (W) | LEDs (Quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
EIR6S Super Comfort | F Frame | 19 19(Max) | 12 | 945 | ML DMX512 Dimming | S 7° 1 13° 2 20° 3 30° | 27 2700K 30 3000K 40 4000K | SS Stainless Steal |
示例：EIR6SF-21EL-S27SS
