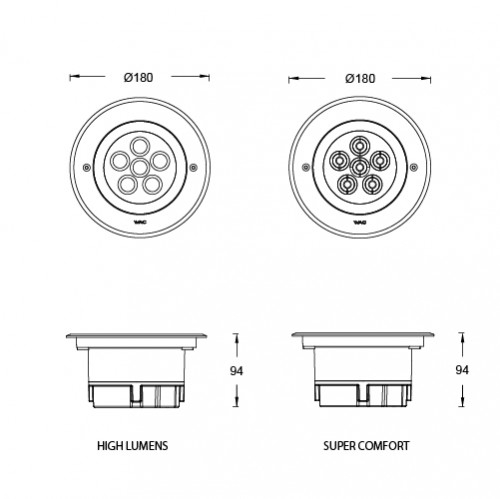

EIR5N/EIR6N/Up Light/High Power LEDs/Φ180
FUEGO Compact 面框采用優質 316 不銹鋼，燈體鋁壓鑄成型，高溫粉末噴涂。適用于戶外環境，IP67 防護等級， IK08 防沖擊等級，可抗壓 2000kg。高透光率透鏡+專利隱光系統。配合預埋筒的設計，方便客戶安裝與維護。
| Model | Comment | Power (W) | LEDs (Quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |

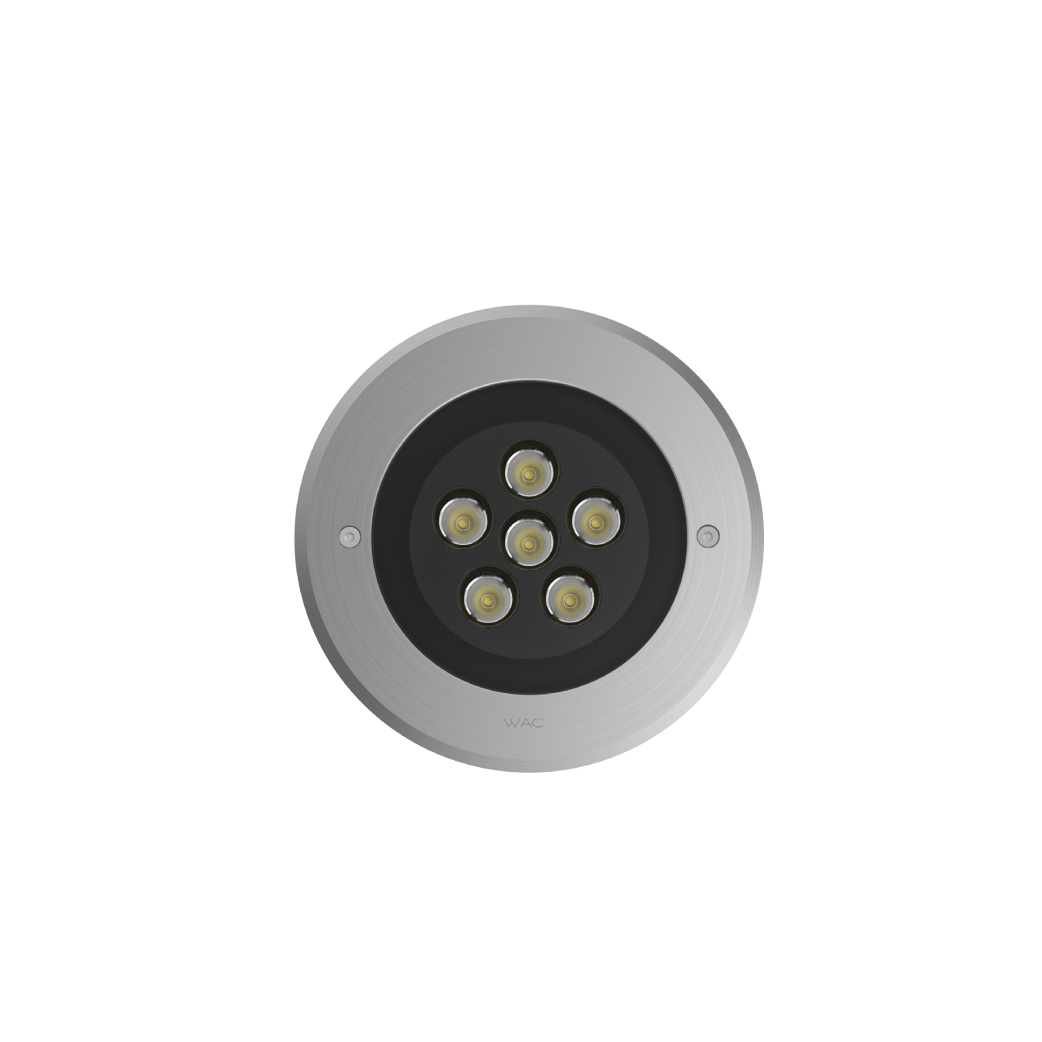

EIR5N High Lumens | F Frame | 13 13(Max) | 6 | 877 | EL ON-OFF 220V AC Power Supply | S 7° 1 14° 2 20° 3 30° | 27 2700K 30 3000K 40 4000K | SS Stainless Steel |
| Model | Comment | Power (W) | LEDs (Quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
EIR5N High Lumens | F Frame | 09 9(Max) | 6 | 607 | ML DMX512 Dimming | S 7° 1 14° 2 20° 3 30° | 27 2700K 30 3000K 40 4000K | SS Stainless Steel |
| Model | Comment | Power (W) | LEDs (Quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |

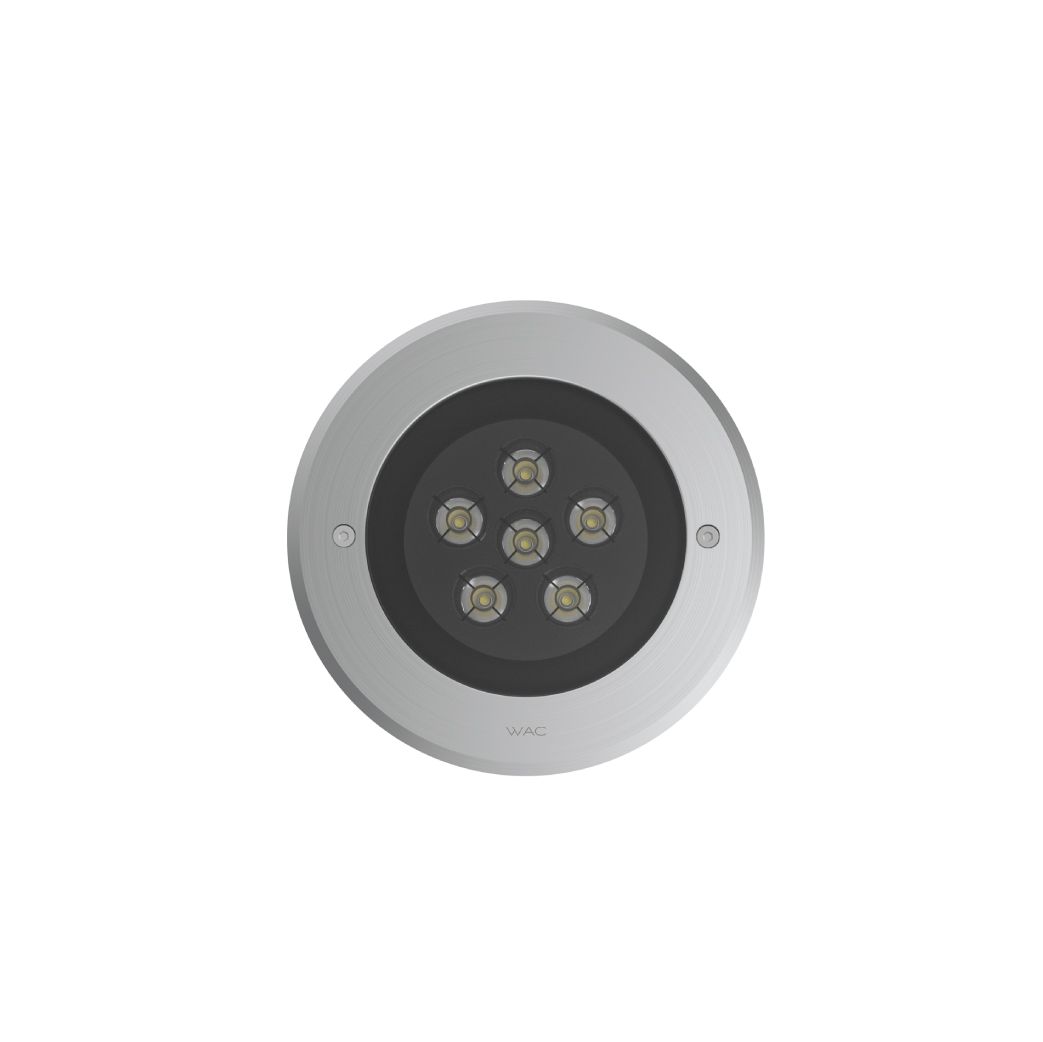

EIR6N Super Comfort | F Frame | 13 13(Max) | 6 | 663 | EL ON-OFF 220V AC Power Supply | S 7° 1 13° 2 20° 3 30° | 27 2700K 30 3000K 40 4000K | SS Stainless Steel |
| Model | Comment | Power (W) | LEDs (Quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
EIR6N Super Comfort | F Frame | 09 9(Max) | 6 | 459 | ML DMX512 Dimming | S 7° 1 13° 2 20° 3 30° | 27 2700K 30 3000K 40 4000K | SS Stainless Steel |
示例：EIR6NF-13EL-S27SS
