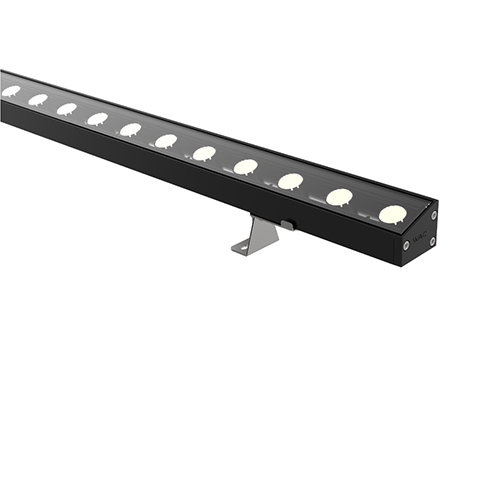

燈具配備光效強，壽命長的高質量芯片以及獨特光學性能的透鏡，結合等間距排布設計，保證了均勻的出光。燈具從側邊或底部出線，特殊配置的 Gore 呼吸閥，可有效平衡內外部氣壓，以防冷凝水，符合 LEED 戶外照明功耗設計的要求。

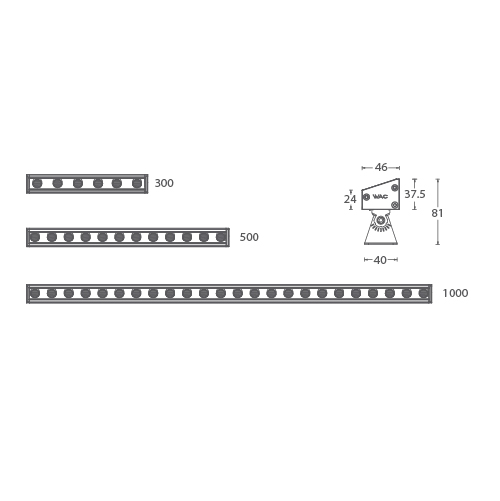

| Model | Length (mm) | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | Power Feed Type | CCT | Finish |
ELW503-14 | 300 | 14(Max) | 6 | 949 | ET ON-OFF 24V DC Power Supply MT DMX512 Dimming 24V DC Power Supply | W Wall Washer | B Bottom | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Length (mm) | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | Power Feed Type | CCT | Finish |
ELW505-28 | 500 | 28(Max) | 12 | 1289 | ET ON-OFF 24V DC Power Supply MT DMX512 Dimming 24V DC Power Supply | W Wall Washer | B Bottom | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Length (mm) | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | Power Feed Type | CCT | Finish |
ELW510-56 | 1000 | 56(Max) | 24 | 3795 | ET ON-OFF 24V DC Power Supply MT DMX512 Dimming 24V DC Power Supply | W Wall Washer | B Bottom | 27 2700K 30 3000K 40 4000K | BK Black |
示例：ELW503-14MT-WB30BK
